The invention concerns an innovation for construction of protective dams according to the sandbag principle.

The task of the invention is therefore to create a novel reliable innovation for all technical sectors currently covered by use of sandbags. The connectable sandbags are fitted with a specific "velcro" pattern on their upper and lower sides, due to which the connectable sandbags (connectable sandbag cover) sturdily connect up to each other upon stacking. The location of the "velcro" pattern on the upper and lower sides guarantee the ability to stack them without looking, even at night. The invention works similar as interlooking bricks in a wall; concretely put: in comparison to a traditional sandbag system, there is increased protection by the factor of 20 - 30 against lateral water pressure. The invention has deliberately kept simple for use by anyone, see the following sample applications:


1.	construction of protective walls to defend dikes in case of flooding and storm floods.
2.	construction of provisional houses and huts in disaster areas, for instance by iglo construction method.
3.	construction of provisional bridges by viaduct construction method.
4.	stable support for buildings in danger of collapsing after earthquakes, for instance in case of collective lodging like schools, gyms and hospitals.
5.	securing of mine shafts by stable supports.
6.	construction af protective walls against high wind speed, for instance as occurring during hurricanes and tornados.
7.	construction of protective walls against fire using fire-proof sandbags (kevlar fabric).
8.	further uses result from protection against slipping loads during transport by ship, airplane, truck and other transport systems (for instance railroads).

Due to the high stability of the connectable sandbags with respect to the known sandbags, the transport amount for the respective use is substantially reduced. This also decreases the cost for storage. Also, the purchasing cost for an amount of connectable sandbags required for securing is lower than the purchasing cost of a corresponding amount of the usual sandbags.
Also, this construction system of the connectable sandbags is reusable for at least 100 times, and after disassembly easily cleanable by pressurized water or cleaning brushes.

Click here for a presentation of the US-Patent
Click here to download a printable PDF-version of the complete patent

Insight into the method of operation of the connectable sandbags is displayed in the
illustrations 1, 2 and 3.

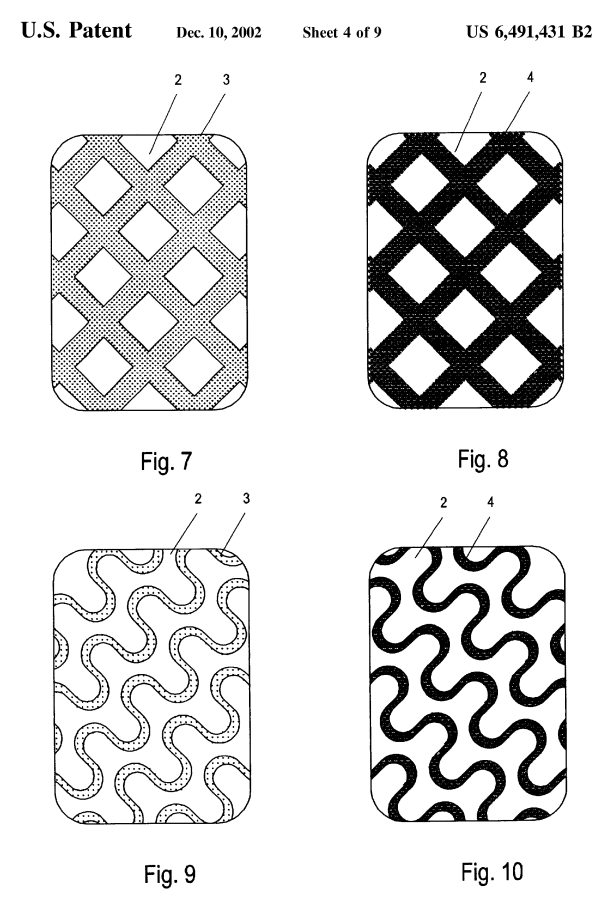

   Illustration 1

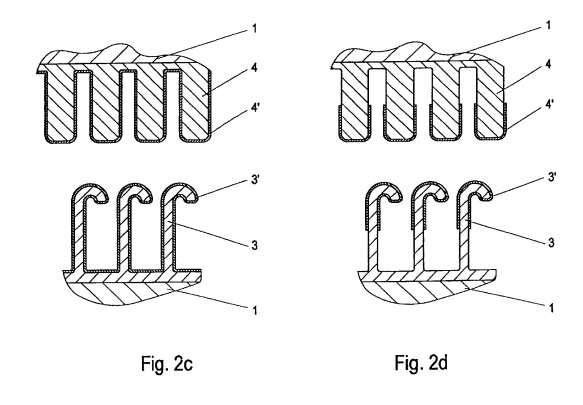

   Illustration 2

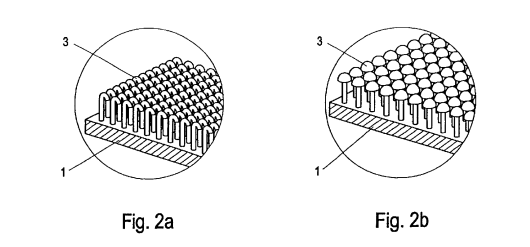

   Illustration 3
